ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

Name: ZL160 Double Support AGV Drive Wheel Built In planetary gear reducer
Brand: ZHLUN
Price: 1900 USD

Quality ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer for sale

Brand Name : ZHLUN

Model Number : ZL-160

Place of Origin : China

MOQ : 1

Price : $1900-3000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 per month

Delivery Time : 30 days

Packaging Details : Wooden box

Warranty : 1 Year

Machinery Test Report : Provided

Services : support for custom

Contact Now

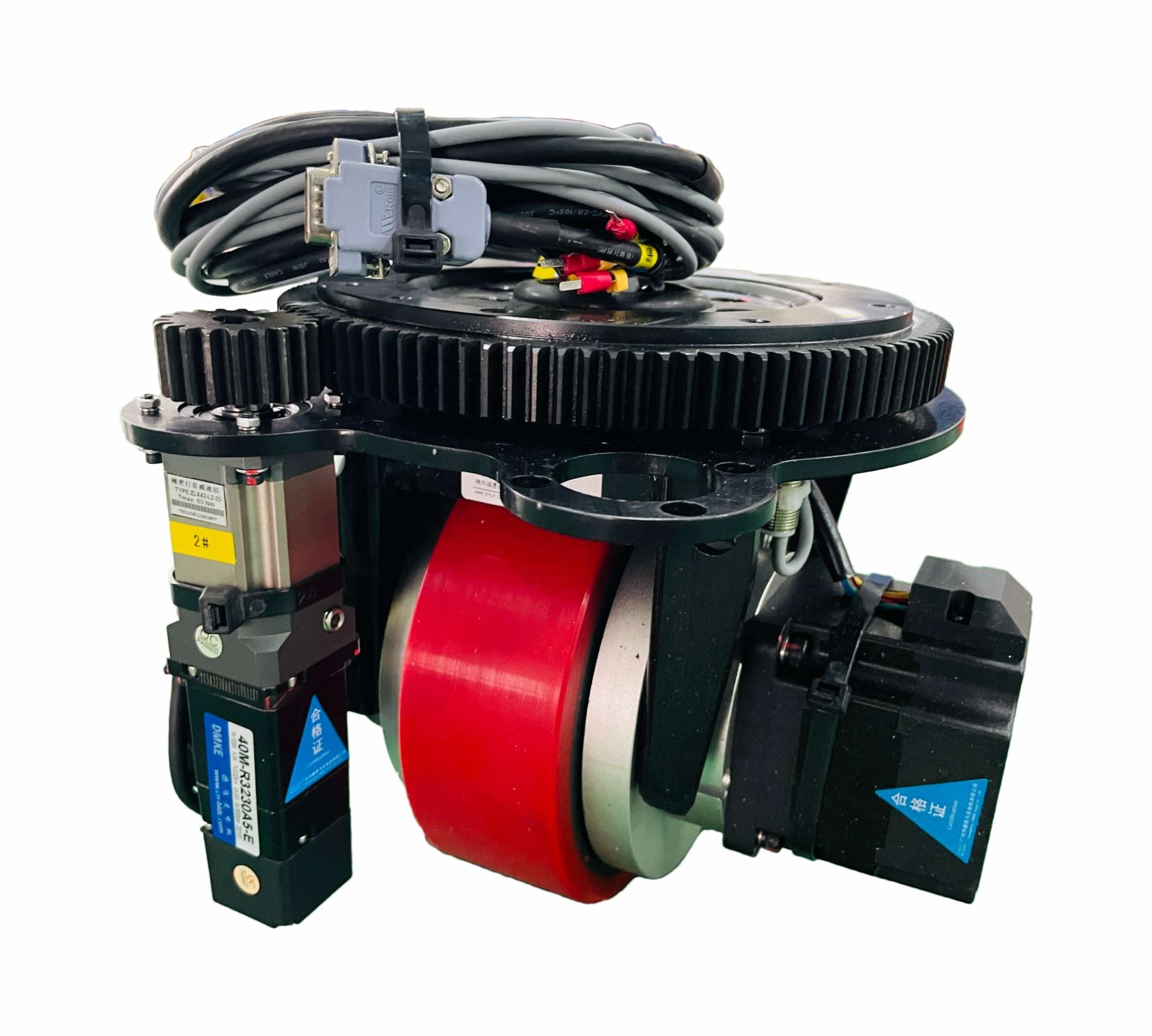

AGV ZL-160 Steering Drive Wheel Double Support Low Strong Load Capacity And Strong Traction Built-In Planetary Reducer

Product Overview

ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

PU wheel with planetary reduction transmission structure

This structure is one of the most important parts of the drive wheel. It can reduce the speed of the motor and increase the output torque at the same time.
Planetary Gearbox: 1 to 3 levels
Speed ratio: 7-120 I

Traction motor

Wheel model up to 7500W

It powers the drive steering wheel.Motor type: Servo/Brushless/Brushed
Rate Speed (customizable): 3000r/min
Rate Voltage: DC24-48V / AC 220V

Motor and driver are sold as a bundle

Steering motor with planetary gearbox

Provides power and torque to the steering function of the drive wheels.Motor type: Servo/Brushless/Brushed
Rate Speed (customizable): 3000r/min
Rate Voltage: DC24-48V / AC 220V

Gear Bearing

Necessary parts for steering wheel to achieve steering, Integrate carrying and steering.  ODM and OEM acceptedMaterial: Steel

Brake

Stop or reduce the speed of the running steering wheel.If the drive wheel needs to climb a slope, it must need a brake.(Optional)
Standard steering drive wheels are available with suitable brakes.

Metal support structure

Link various important parts of the steering wheel, while supporting and improving the bearing capacity of the steering wheelODM and OEM accepted
 Material: Steel

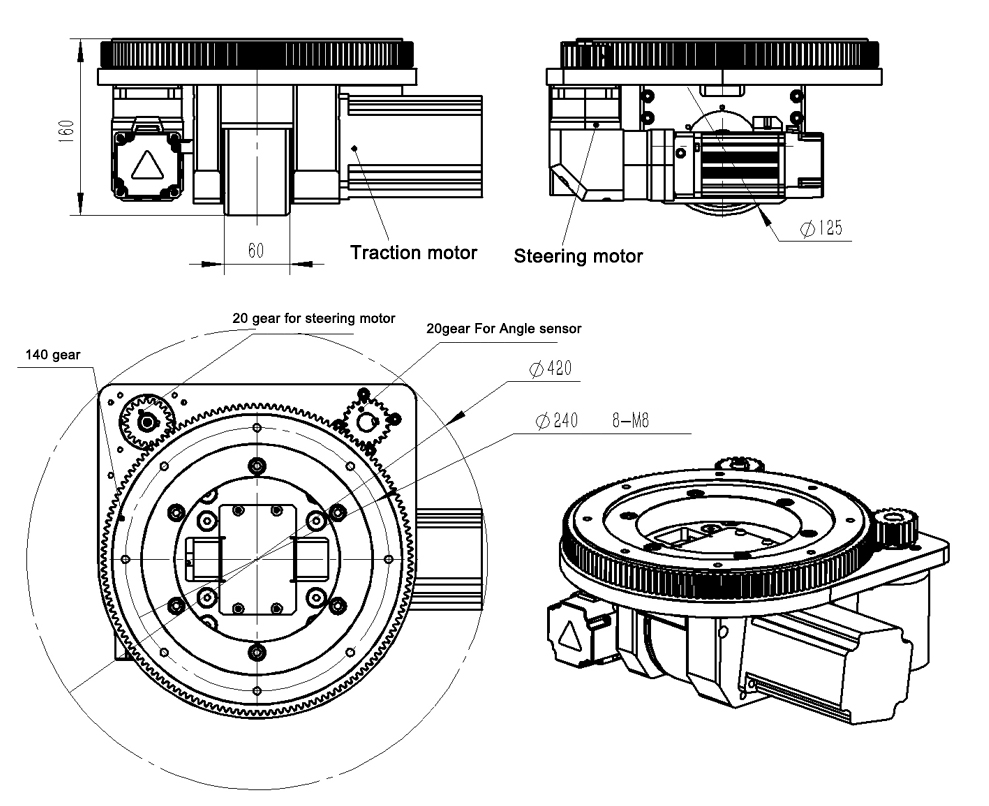

Product Specification

Technical Parameter
Model	ZL-160
Gearbox	Level 1 to 3 planetary
Speed ratio	I	7-120
Wheel diameter	mm	125
Fastest speed	m/min	20-200
Max. Load	KG	800
Temperature	℃	-10 to +55
Weight	KG	30
Traction motor technical parameter
Motor type	Servo / Brushless
Rated power	W	1000-7500
Rated voltage	V	DC24/48V, AC220V
Rated speed	rpm/min	3000 customizable
Rated torque	N.m	.32-3.18
Steering motor technical parameter
Motor type	Servo / Brushless
Rated power	W	1000-3000
Rated voltage	V	DC24/48V, AC220V
Rated speed	rpm/min	3000 customizable
Rated speed	N.m	0.16-0.64
Steering reducer speed ratio	I	35-120
Mechanical limit range	±120°
Angle limit	Proximity switch NPN / PNP
Angle sensor	Potentiometer / Incremental / Absolute value (Optional)

Product Application

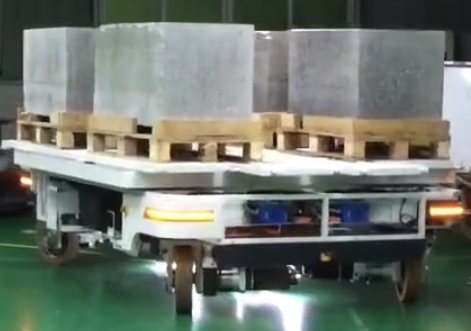

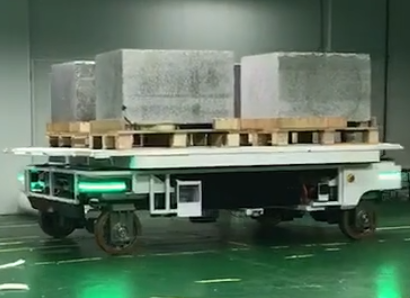

AGV Loading Drive Platform Truck

Latent type AGV

Standard height AGV

Large Platform Truck

Our steering wheel matches AGVs of different heights
Match any AGV system and transport equipment

ZL-130
Installation height: 130mm
Load: 500 kg

ZL-230
Installation height: 230mm
Load: 1000 kg

ZL-380
Installation height: 380mm
Load: 3000 kg

Drive Wheel Control Kit

Steering wheel drive remote control kit (brushless motor as an example)

One-stop solution for steering wheel drive, just connect a suitable battery and drive easily by remote control. Save time and effort without electrical engineering installation.It is feasible to add lifting equipment on the basis of the steering wheel too.

Successful Project

Other types

ZL-B26
Shock-absorbing Steering Wheel
Suitable for 1 drive wheel and 4 caster structure, with shock absorption function, the chassis keeps driving balance at all times.

ZL-325
Differential Steering Drive Wheel
Has a low height and has a high load of 3T. Suitable for low profile and large load drive platforms

ZL-460
Vertical Steering Drive Wheel
Motor vertical design, suitable for high and low disc design, equipped with rubber wheels and 1T load
